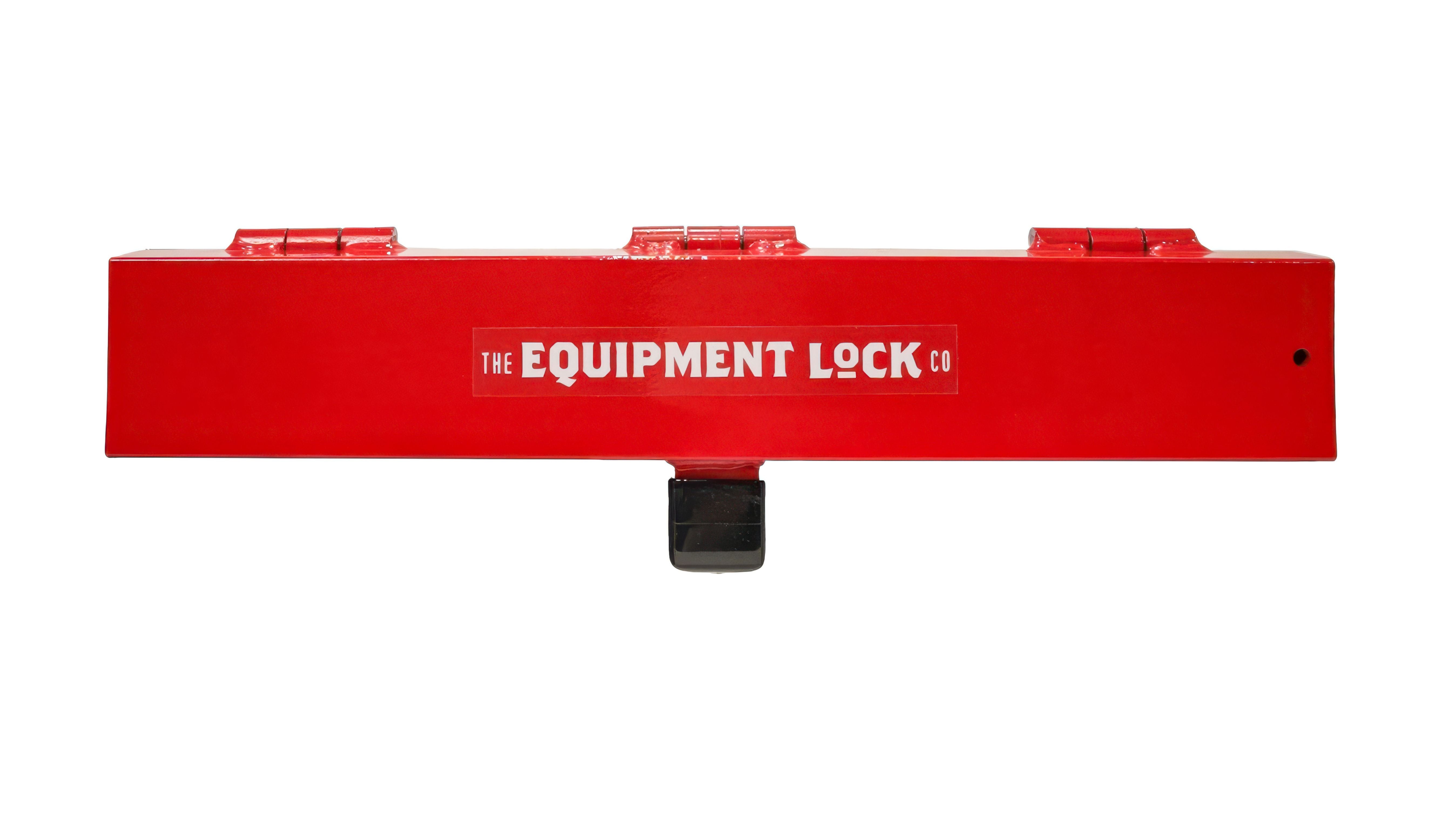

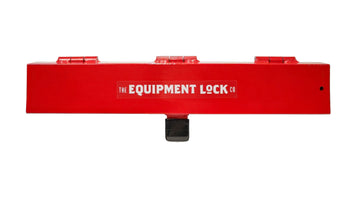

Stabilizer Lock

$249.95 USD
More details
Installation Instructions

Easy-Install, No Mounting Required

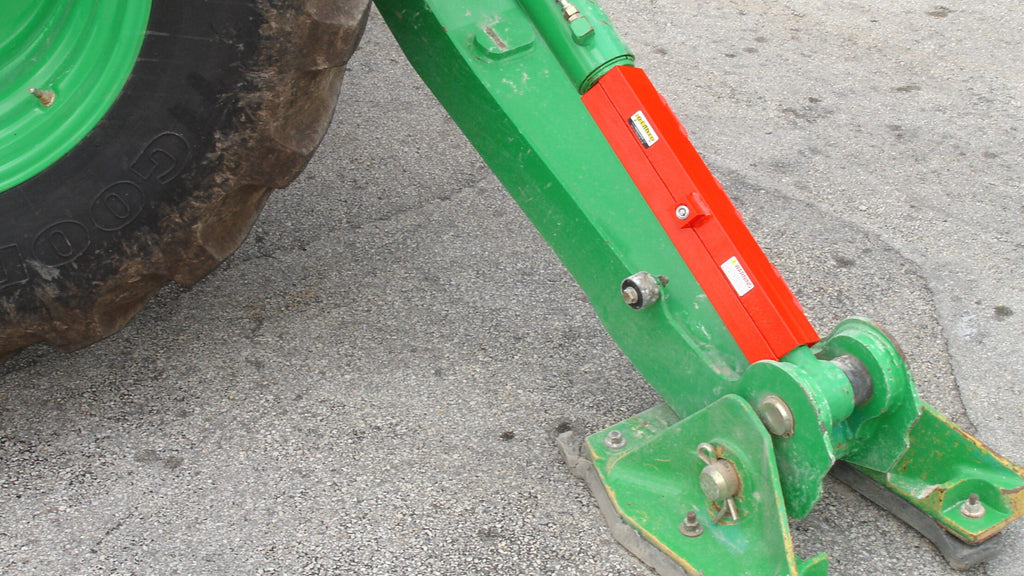

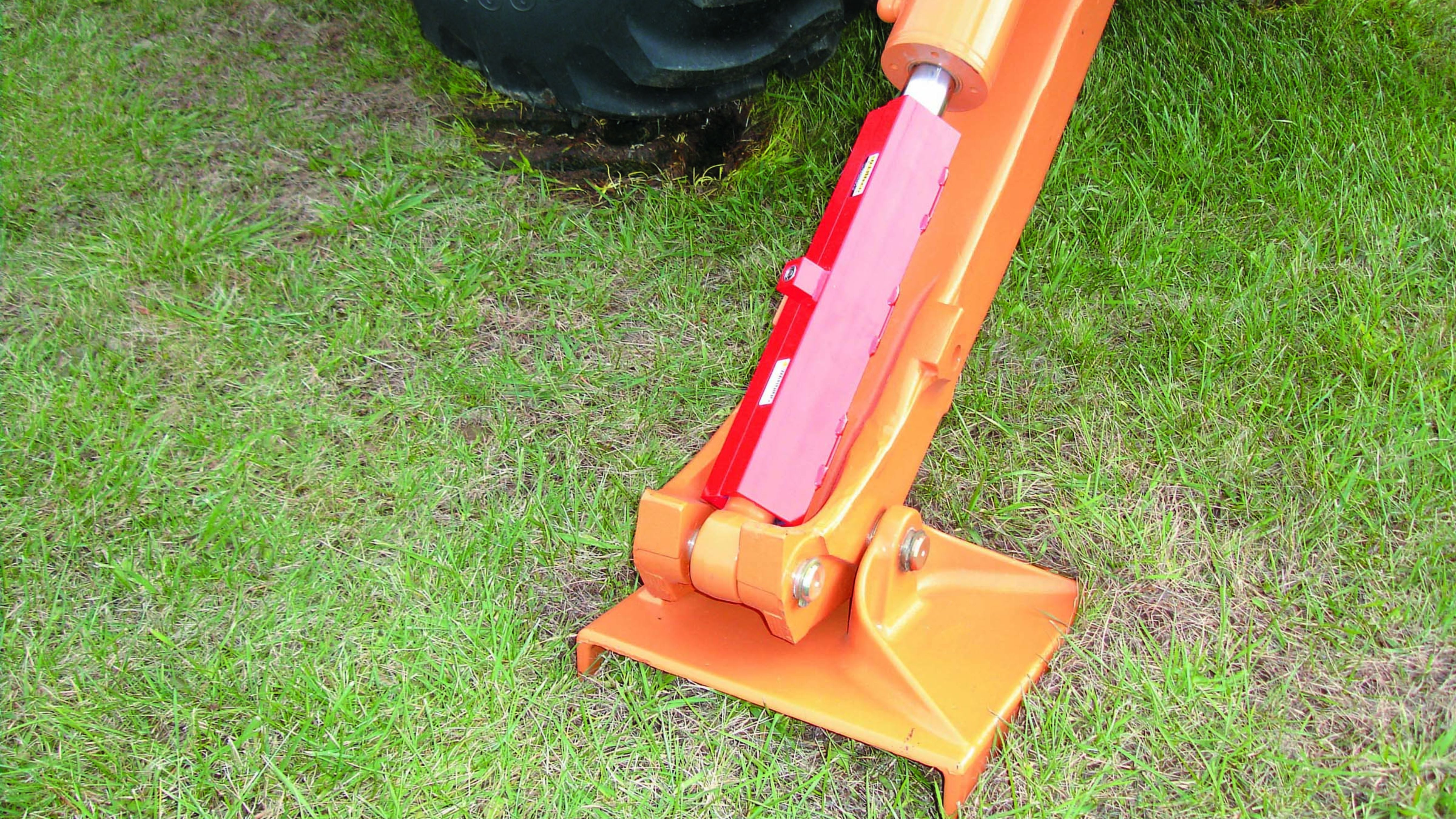

The Stabilizer Lock anchors the stabilizer, outrigger, and steering cylinder in the fully extended position – locking the wheel off the ground.

Lengths may vary; refer to specifications for more details.

View Installation Instructions

View Measuring Guide

Product Specifications

Weight 18 lbs
Dimensions 7 × 3 in
Lengths 27” – CASE® 780
21” – New Holland® backhoe only
18” – Standard for all other full-size backhoes
15” or 12” – Mini backhoes, dozer blades, or articulating equipment steering cylinders
6.5” – Mini excavators, and trencher backfill blades

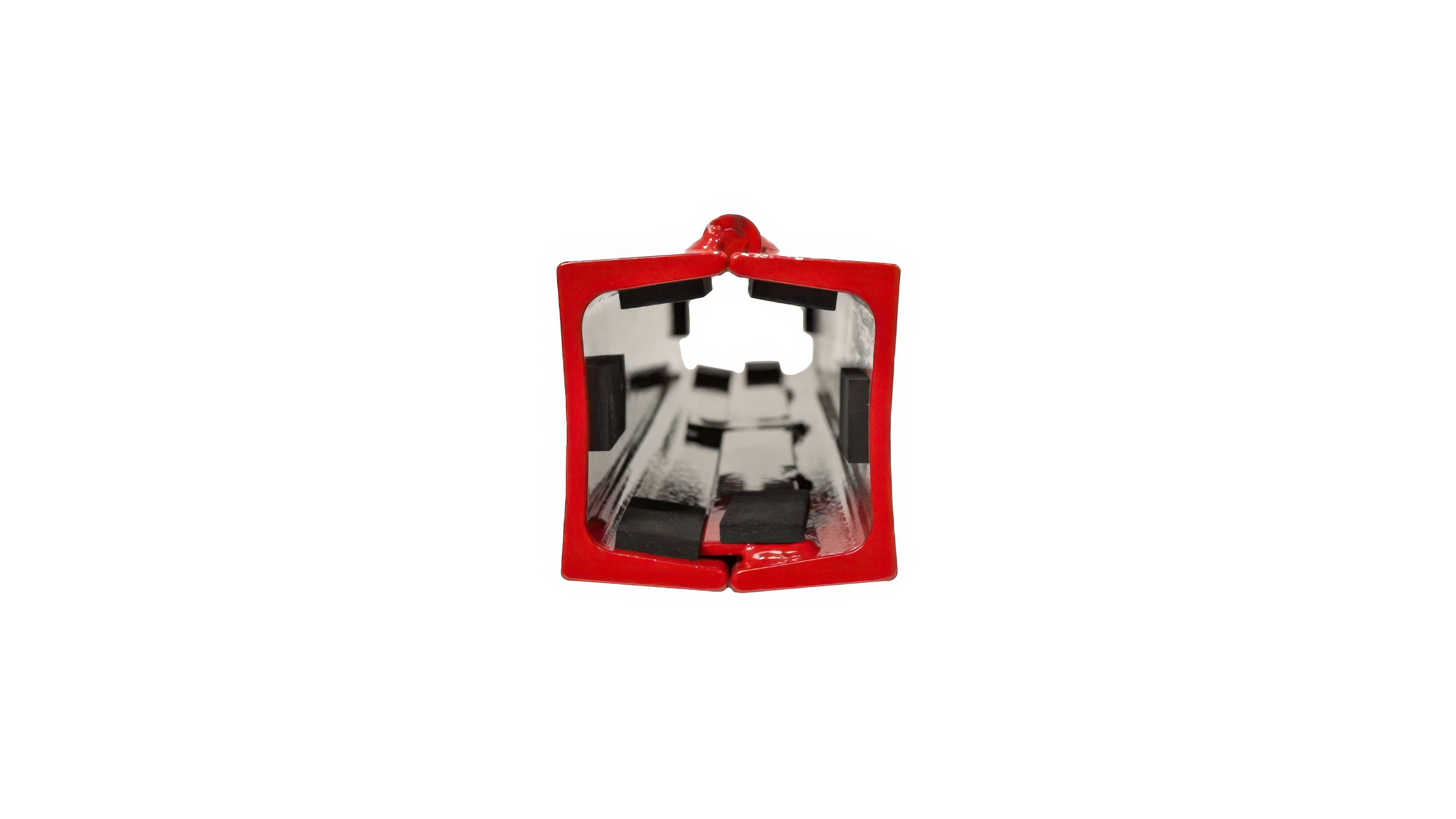

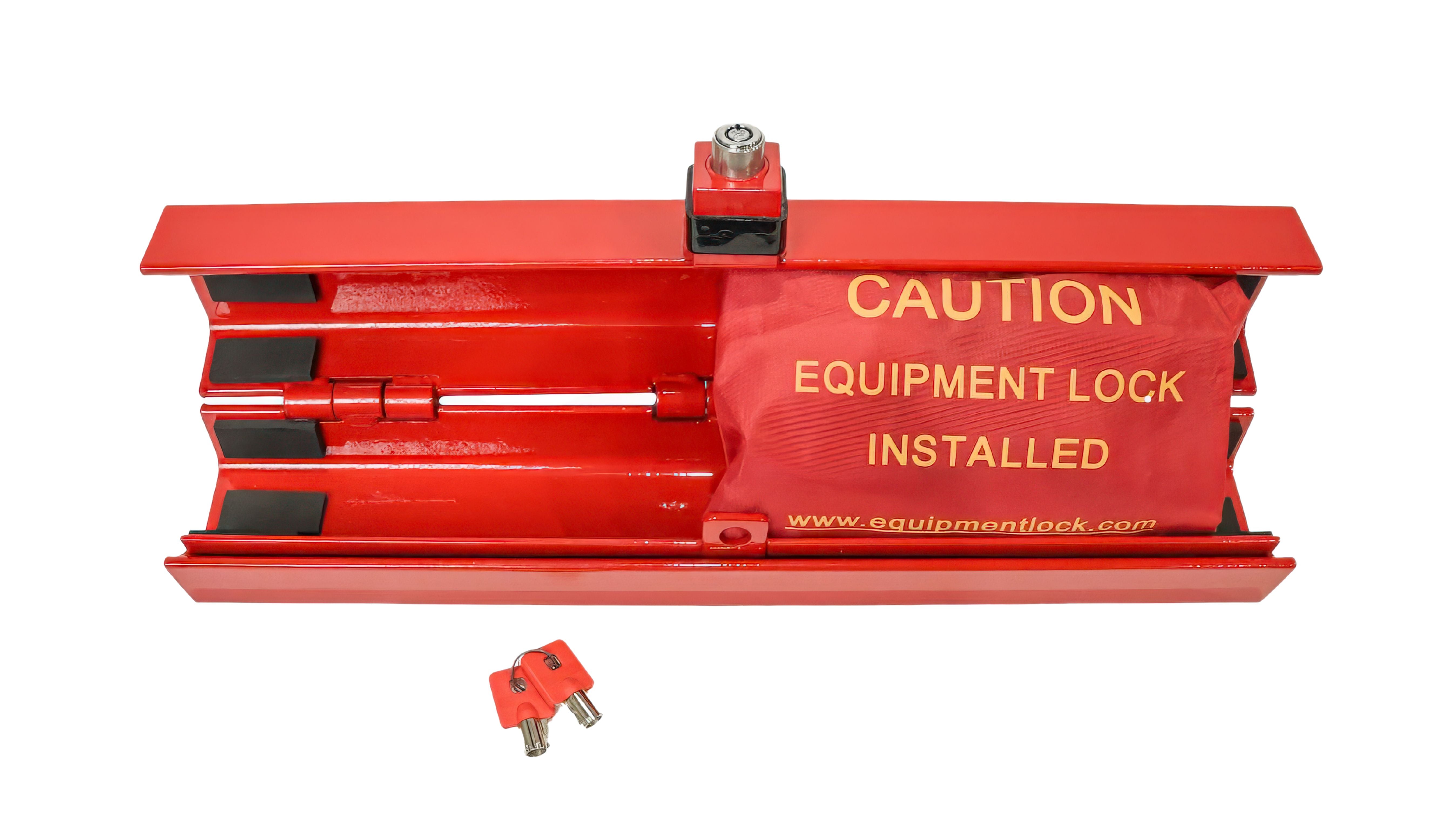

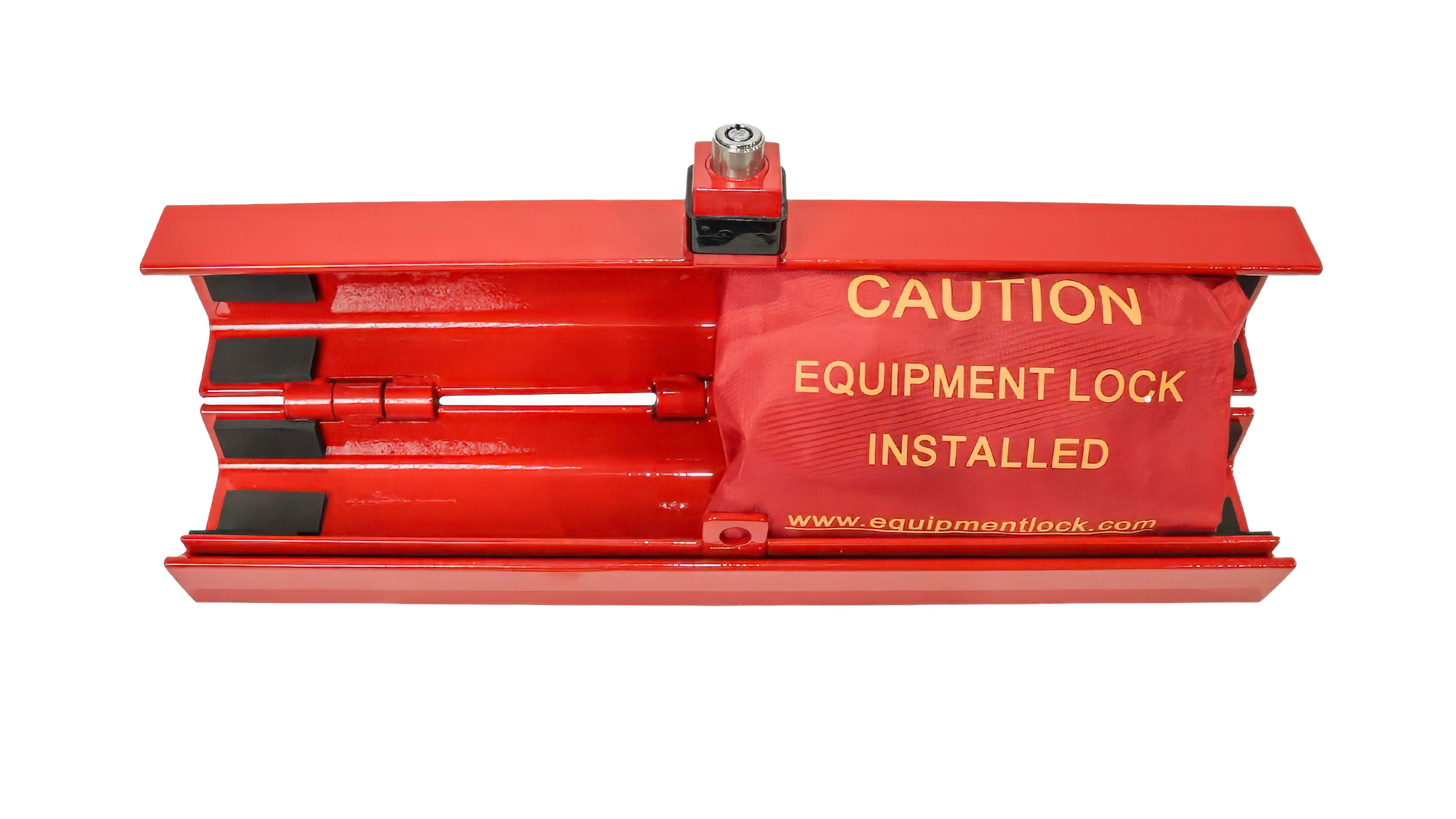

Material Built with rubberized foam inside to protect your cylinder; 3″ channel steel
Finish type Powder coat
Fit The maximum cylinder diameter is 2-3/8”, which includes almost all full-size backhoes
Part number Keyed unit: STBL
Combo unit: STBL-C

Keying Options

Keyed Differently
For more controlled access to your equipment, no code is kept on file with our keyed differently option. Each key is made unique to the individual lock.

Keyed Alike
With our exclusive keyed-alike option, your key code is kept on file, allowing future locks to be accessed with a single key.

If you already have a key code on file that you wish to match, select “keyed alike” and enter your assigned key code at checkout.

Combination Lock
Four-digit combination locks are ideal for multiple users who need to unlock containers or equipment without several sets of keys circulating or getting lost.

×
